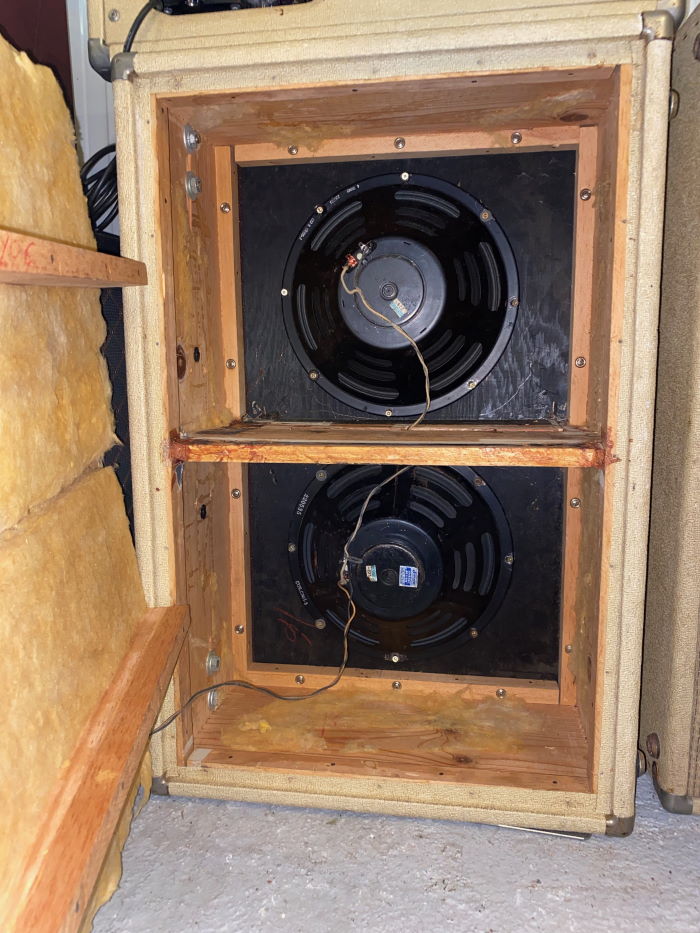

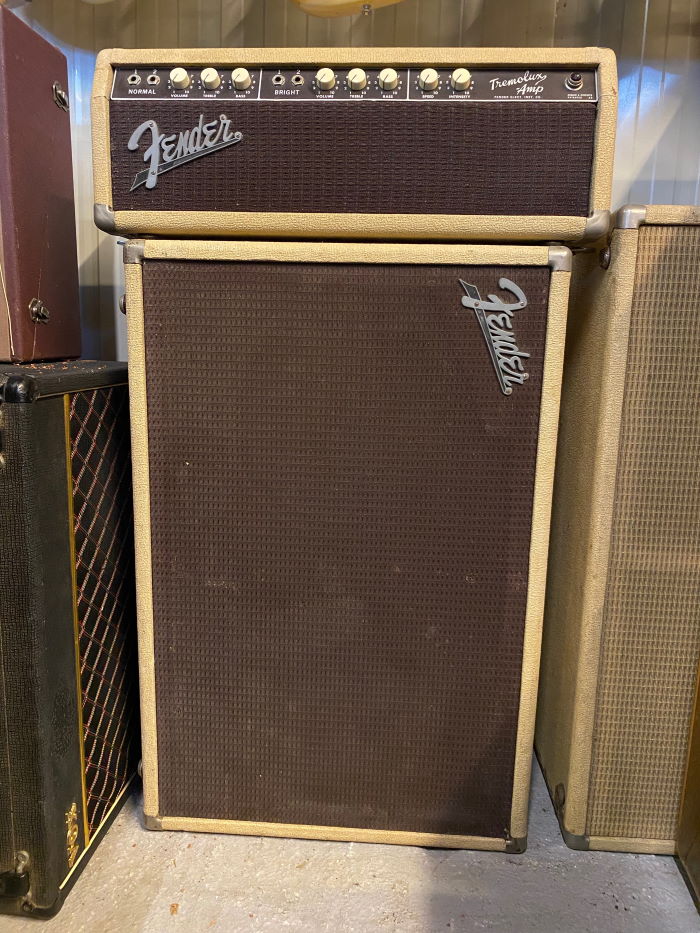

Fender TREMOLUX 1962 Blonde Tolex 2x12" Jensen (up grade) one 1965 and one 1967, Super Tone ! Head all Original 117 Volts Code AM239

Tremolux 6G9, 6G9-A, 6G9-B (blonde)
00100 to 01000 - 1961
00900 to 04200 - 1962
04200 to 05900 - 1963

Model/Circuit Number: 6G9, 6G9-A, 6G9-B
Years of Production: 1961 - 1963
Era: Blonde
Configuration: Piggyback
Controls: Brown forward facing w/ white labels, controls numbered 1 - 10
Knobs: White round, unnumbered
Faceplate

* Front: Bright: In, In, Vol, Treb, Bass - Normal: In, In, Vol, Treb, Bass - Speed, Intensity - Pilot Lamp

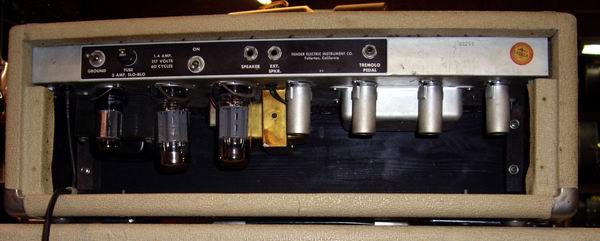

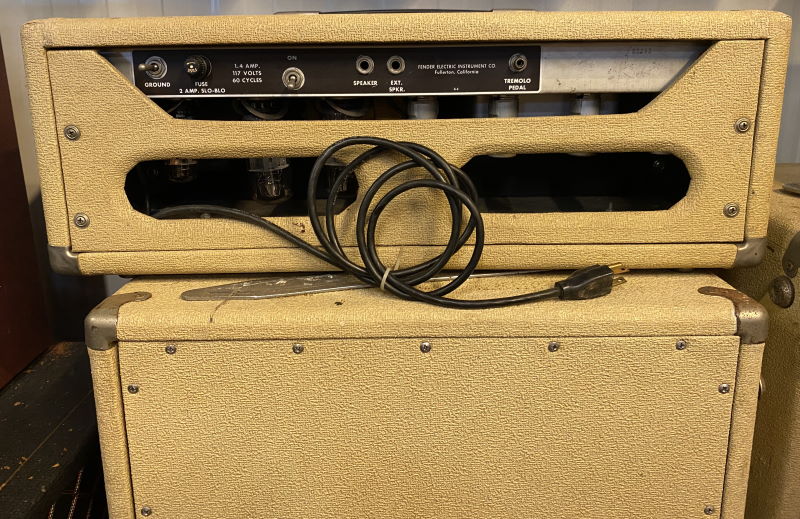

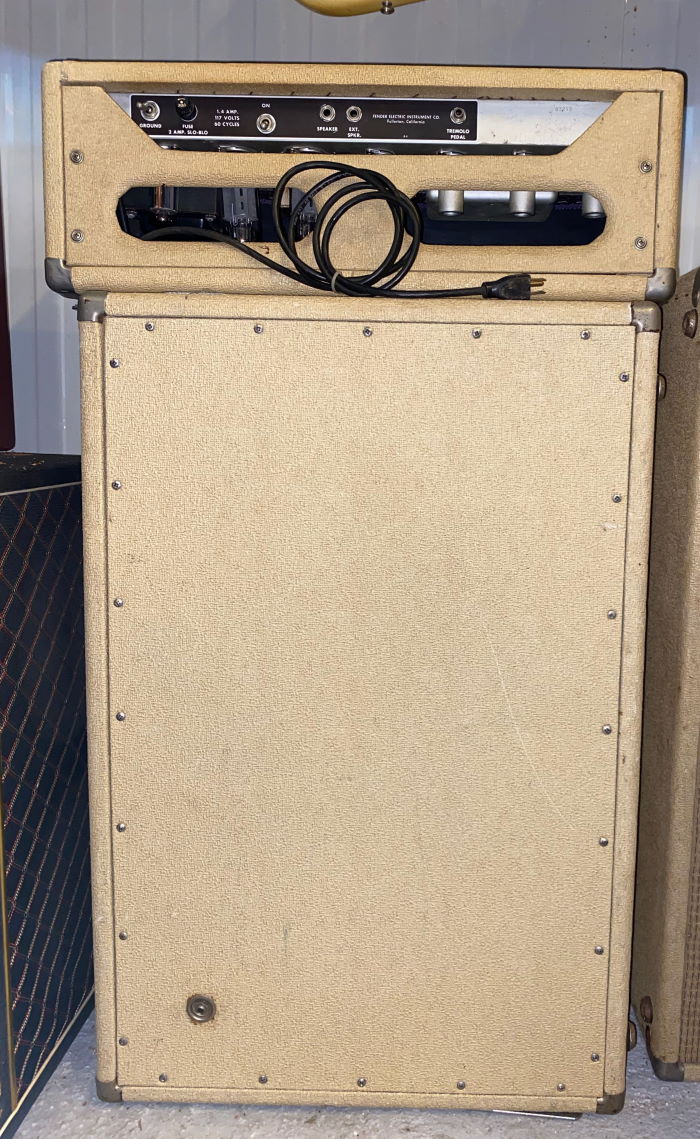

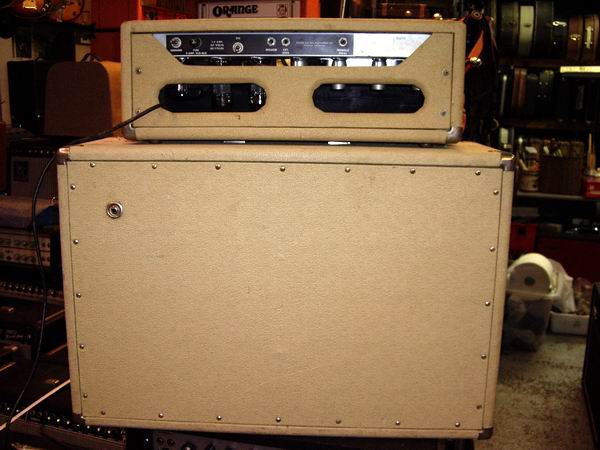

* Rear: Ground Sw, Fuse (2A), Power Sw, Standby Sw, Speaker Jack, Ex. Speaker Jack, Tremolo Jack

Cabinet

* Dimensions: Head: 8 x 23 x 8 3/8, Cabinet: 17½ x 27 x 11½
* Hardware: Medium Chassis Straps 4 5/8''
* Handle: Brown plastic Strap
* Feet: Glides
* Corners: Corner Protectors

Covering Material

* Tolex/Tweed: White Tolex
* Grill Cloth: Maroon (61-62) or wheat (62-63) grill cloth

Logo: Grill mounted, flat, chrome & black, script

Speaker:

* Size: 6G9, 6G9-A: ported tone ring, 1 x 10''/8 ohms 6G9-B: sealed, 2 x 10/4 ohms (8 ohms each in parallel)
* Impedance: 8 ohms ; 4 ohms

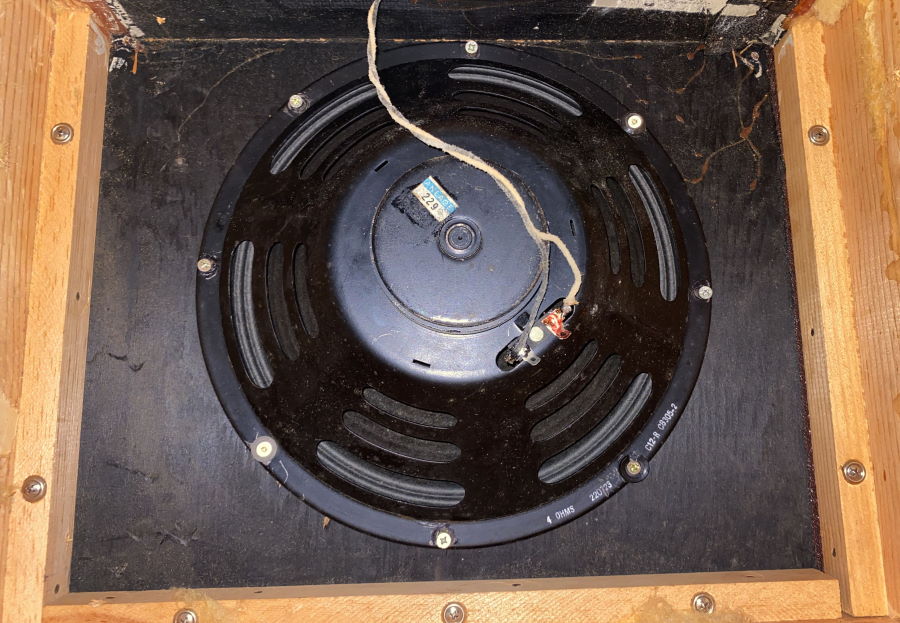

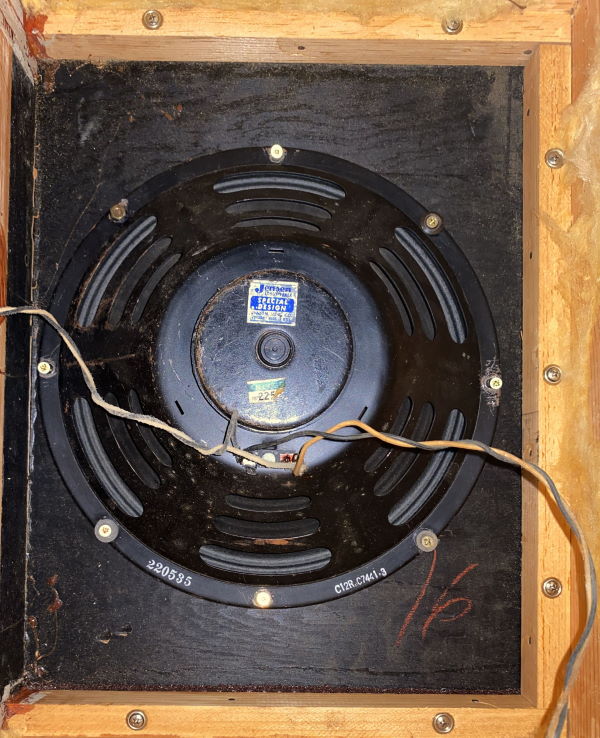

* Model: Jensen P10Q or Oxford 10K5

Effects: Tremolo
~Watts: 30-35 watts

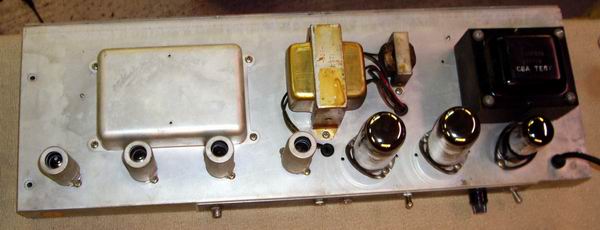

Tubes

* Pre amp: 7025
* Power: 6G9: 2 x 6BQ5 ; 6G9-A, 6G9-B: 2 x 6L6GC

Bias: Fixed Bias, Nonadjustable
Rectifier: GZ34

Comments: Some early Tremolux cabs were fitted with a 1 x 12" baffle.
