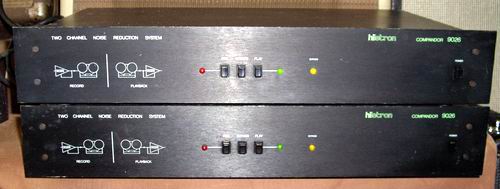

Compressore espansore di dinamica a doppia soglia stereo - Marca Hiletron mod. Compandor Mod.9026

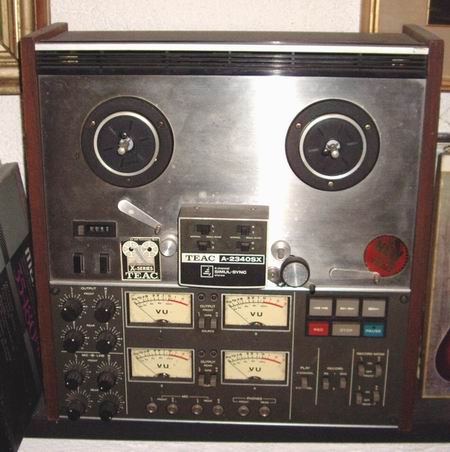

TEAC A2340 SX + 2COMPANDER HILETRON STEREO



Roxy Musics Brian Eno experiments with a Teac 3340-based home set up. Enos later work would retain the do-ityourself ethos, not least his productions with Daniel Lanois for U2. Although the band worked in established studios such as Hansa, Berlin, U2 also rented tape machínes and mixing desks to record in a Dublín castle.

Specifications
(From the maker when new. Performance and accessories do not necessarily apply to our used machines!):

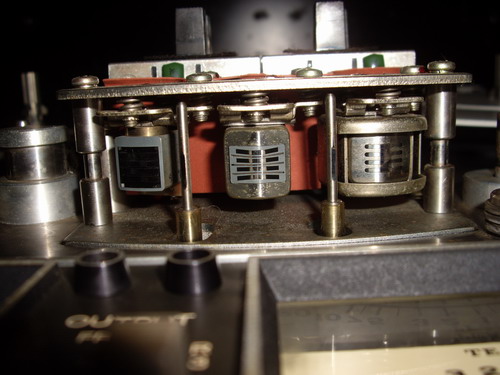

Heads Three, 4 track-4 channel and 2 channel, stereo or mono erase, record and playback
Reel Size 7" and 5"

Tape Speed 7-1/2 ips and 3-3/4 ips (±0.5%)

Motors 1 dual speed hysteresis synchronous capstan motor
2 eddy current induction reel motors
Wow and Flutter 0.08% at 7-1/2 ips
0.10% at 3-3/4 ips

Frequency Response 30 - 22,000 Hz (±3 dB, 40 - 18,000 Hz) at 7-1/2 ips
30 - 16,000 Hz (±3 dB, 40 - 10,000 Hz) at 3-3/4 ips

Harmonic Distortion 1% at 1,000 Hz normal operating level

Signal to Noise Ratio 55 dB
Stereo Channel Separation 50 dB at 1,000 Hz
Fast Winding Time 140 seconds for 1,800 feet

Inputs Line : 0.1 V, 50,000 ohms or more
Microphone: 0.25 mV/ -72 dB (600 - 10,000 ohms)

outputs Line 0.3 V for load impedance of 10,000 ohms or more
Headphones: 8 ohms

Power Requirements 117 V AC, 60 Hz, 110 W

Dimensions 18-3/4"(H) x 17-5/16"(W) x 8-3/4"(D)

Weight 46-1/4 lbs, net
